Clockwork Gameshell

I am using ClockworkOS on my clockworkpi.

  • Default user: cpi
  • Default password: cpi

Connect via WiFi

  • Make sure you are connected to a 2.5Ghz WiFi. On the Gameshell you can use "Tiny Cloud" for the Gameshell IP, user and password information.

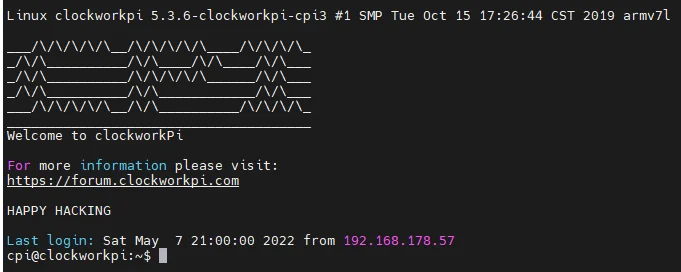

  • On your PC run e.g.: ssh cpi@


Alternatively connect using FTP.

Connect via USB


In order to Connect via USB do the following:

  • Connect your Gameshell to your PC via USB cable
  • On your Gameshell, go to Settings -> Network gateway switch -> Choose USB Ethernet. You should see an IP address on the screen (e.g.

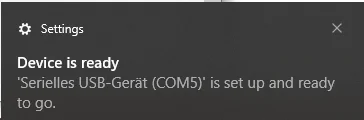

  • The PC should recognize a new COM Device:


  • In the Windows Device Manager, go to the correct COM Device and click update driver. Use this RNDIS driver for WIN drivers to install a new network device.


  • Now it is possible to connect to the the Gameshell via SSH or FTP using the IP provided on the Gameshell screen.


Setup Gameshell USB connection using linux (orignal guide here).

Check /etc/network/interfaces on your CLOCKWORKPI partition, if it matches with this information:

allow-hotplug usb0
auto usb0
iface usb0 inet static
dns-nameservers ${ip_of_your_router}

Replace if is_wifi_connected_now(): of /home/cpi/apps/launcher/Menu/GameShell/10_Settings/Update/ with if True: to use ‘Update’ from the GameShell menu using USB.

Check with lsusb if you can find a device e.g. Bus 001 Device 007: ID 0000:aaaa Netchip Technology, Inc. Linux-USB Ethernet/RNDIS Gadget

Create new network rules using your internet_interface and gameshell_interface:

sudo iptables -t nat -A POSTROUTING -o ${internet_interface} -j MASQUERADE
sudo iptables -A FORWARD -m conntrack --ctstate RELATED,ESTABLISHED -j ACCEPT
sudo iptables -A FORWARD -i ${gameshell_interface} -o ${internet_interface} -j ACCEPT

Assign a static IP address to your gameshell_interface. The ip should match gateway of step 4!

sudo ip link set up dev ${gameshell_interface}
sudo ip addr add dev ${gameshell_interface}

Enable internet forwarding:

sudo sysctl net.ipv4.ip_forward=1

Login to your GameShell ssh cpi@, copy files and e.g. check if the GameShell can reach the internet: ping



To get updates using ClockworkOS run this command once:

sudo apt install dirmngr
sudo apt-key adv --keyserver --recv-keys 40976EAF437D05B5
sudo apt-key adv --keyserver --recv-keys 3B4FE6ACC0B21F32
sudo apt-get update

Now sudo apt-get update should work fine.

WiFi power saving

Disable the WiFi power saving mode for a stable SSH connection

sudo iw wlan0 set power_save off
sudo iw wlan0 get power_save

To set this on every boot, add a script named powersave_off to /etc/network/if-up.d/ and set the exec permission:

chmod +x /etc/network/if-up.d/powersave_off

Here is the script:

set -e

# Don't bother for loopback
if [ "$IFACE" = lo ]; then
        exit 0

# Only run from ifup.
if [ "$MODE" != start ]; then
        exit 0

# Only do it once (skip for inet6).
if [ "$ADDRFAM" != inet ]; then
        exit 0

/sbin/iw dev wlan0 set power_save off

exit 0

Copy Games

Navigate to \\\games and copy+paste any games you want to play in the correct folder.

Or use scp to copy this snes game.rom e.g. :

scp game.rom cpi@


PICO-8 is a fantasy console for making, sharing and playing tiny games and other computer programs. It feels like a regular console, but runs on Windows / Mac / Linux. When you turn it on, the machine greets you with a command line, a suite of cartridge creation tools, and an online cartridge browser called SPLORE.

  • Once purchased, visit the downloads page and download the Raspberry Pi version. This file has a filename similar to:
  • Select TinyCloud on the Gameshell and copy the files using SCP. IP, username and password are displayed in TinyCloud.
  • Make sure the file is named even if you downloaded a newer version and copy the zip file to ~/games/PICO-8/.
  • Be careful not to select "Exit to Console" from the shutdown menu. This puts PICO-8 in its game developer mode. Hold down the GameShell's power button to reset if you get stuck here.
